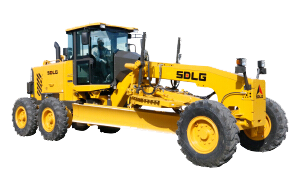

G9138F is a high-speed, high efficiency, high precision and versatile product developed by SDLG after full investigation of market demands, which can complete the ground leveling and trenching, slope scraping, bulldozing, snow discharge, loosing, compaction, material distribution, mixing, etc, and is widely used in highways, airports, defense engineering, mine construction, road construction, water conservancy construction, farmland improvement and other construction conditions.

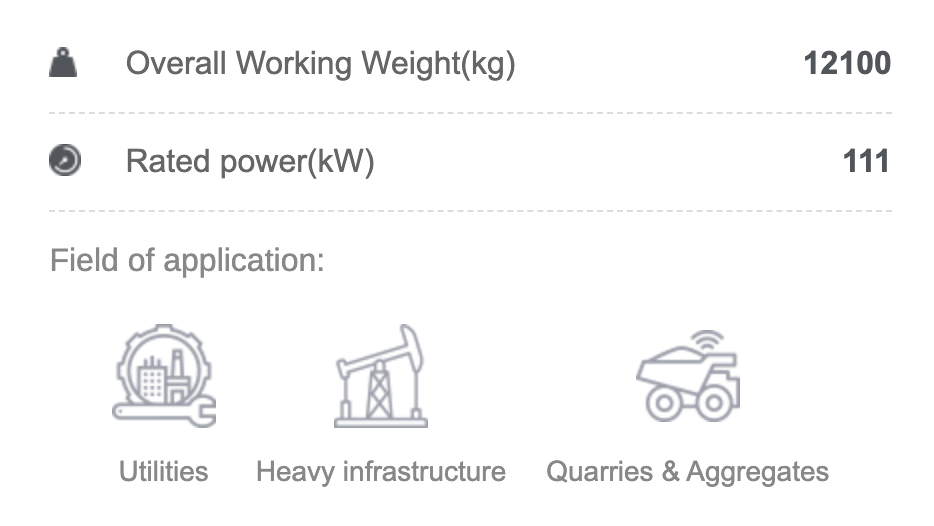

| Overall Working Weight(kg) | 12100 |
| Rated power(kW) | 111 |
| Max. tractive force(kN) | 75.4 |
| Overall dimension（L×W×H）(mm) | 8120×2410×3200 |
| Max. inclination angle of front wheel(°) | 18 |
| Max. swing angle of front axle(°) | 16 |
| Max. steering angle of front wheel(°) | 50 |
| Steering angle of articulated frame(°) | 25 |
| Cutter size（LxHxT）(mm) | 3048x580x16 |
| Min. turning radius(m) | 6.5 |
| Cutting depth of blade(mm) | 575 |
| Max. speed(km/h) | 39 |
| Engine model | BF4M1013-15T3R/2 |
| Emission standard | China Phase III |
| Fuel tank capacity(L) | 210 |
