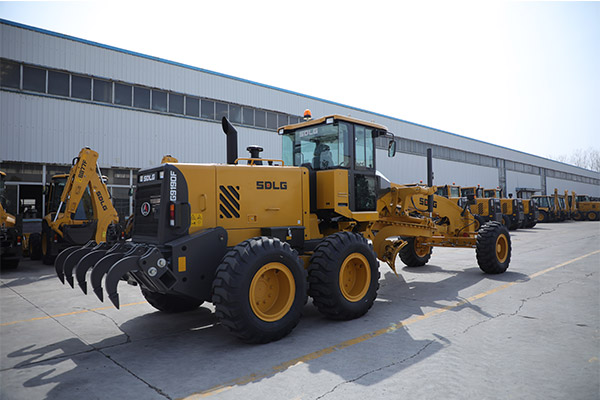

G9190F is a product of high speed, high efficiency,high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening,compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on.

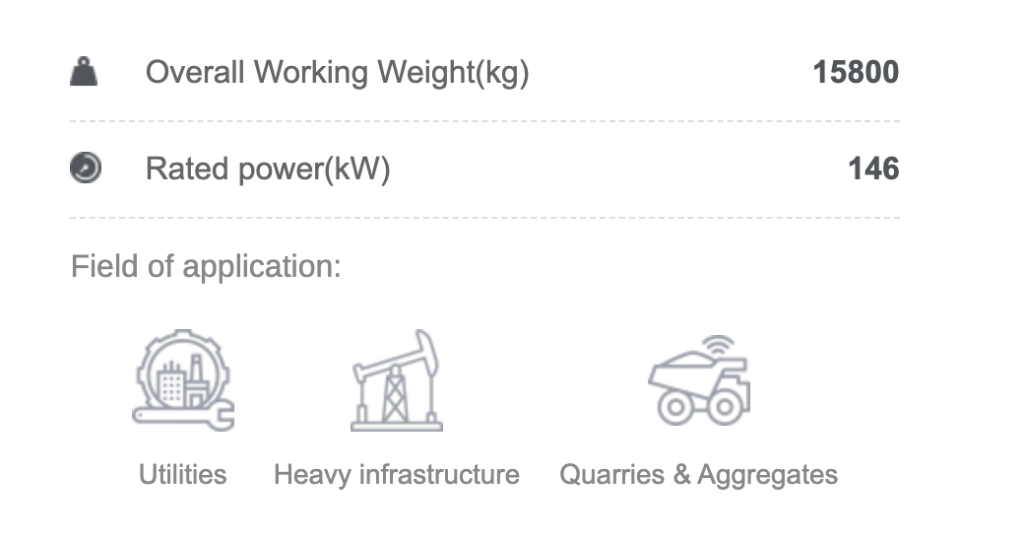

| Overall Working Weight(kg) | 15800 |
| Rated power(kW) | 146 |
| Max. tractive force(kN) | 82 |
| Overall dimension（L×W×H）(mm) | 8975X2710X3240 |
| Max. inclination angle of front wheel(°) | 18 |
| Max. swing angle of front axle(°) | 16 |
| Max. steering angle of front wheel(°) | 50 |
| Steering angle of articulated frame(°) | 23 |
| Cutter size（LxHxT）(mm) | 3962x610x25 |
| Min. turning radius(m) | 7.6 |
| Cutting depth of blade(mm) | 787 |
| Max. speed(km/h) | 38 |
| Engine model | BF6M1013EC |
| Emission standard | China Phase III |
| Fuel tank capacity(L) | 300 |
