RELIABILITY
· Yuchai YC4DK90T307 Tier 3, turbocharging, electronically controlled, high pressure common rail, air inlet preheating and other functions
· Electronic pedal signal input and output controlled
· CAN communication to realize the communication of each function signal
· Shantui BD06 fixed shaft straight gear transmission with reliable quality and low cost
· Reinforce frame, passed 200,000 fatigue strengthening tests, strong carrying capacity, reasonable load distribution
· SDLG self-made reinforced A513 axle with high carrying capacity, long service life
COMFORT
· New design H series FOPS&ROPS cab, space increase 15%, view increase 7%, good seal performance, low vibration and noise
· New generation colorful LCD panel
· Automatic leveling of bucket
· Boom lift limit
ECONOMY
Set the three-level power mode, which are respectively suitable for heavy load conditions, standard conditions and light load conditions

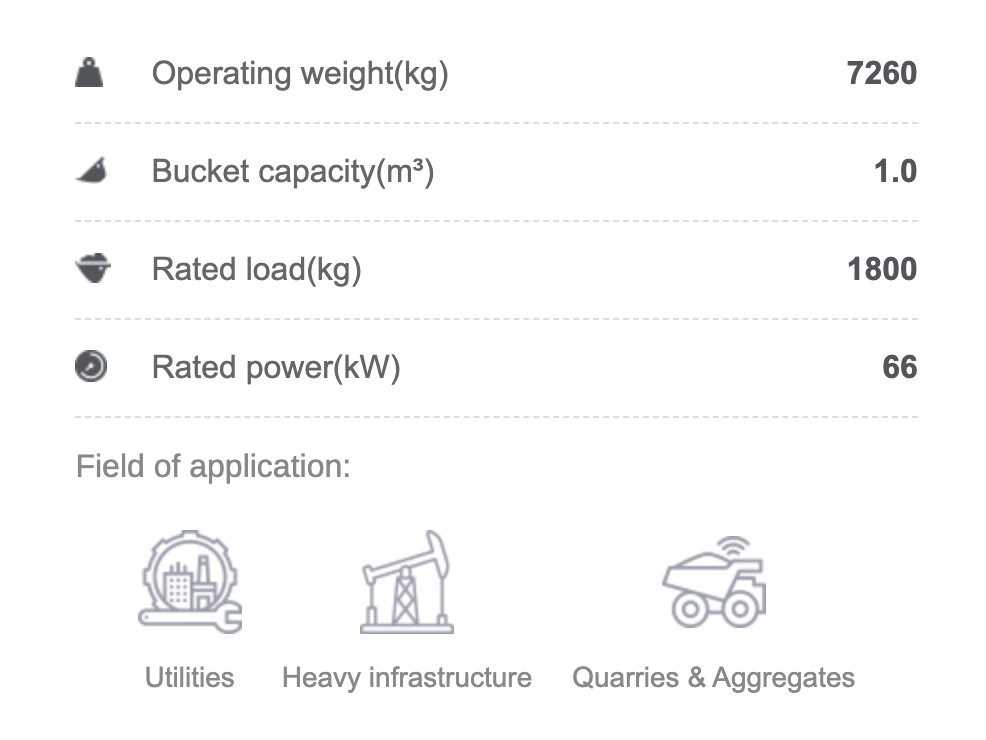

| Operating weight(kg) | 7260 |
| Bucket capacity(m³) | 1.0 |
| Rated load(kg) | 1800 |
| Length×Width×Height(mm) | 6090x2150x3150 |
| Wheel base(mm) | 2260 |
| Max.dumping height(mm) | 2510 |
| Dumping distance(mm) | 920 |
| Steering angel(°) | 35 |
| Engine Model | YC4DK90-M300 |
| Rated power(kW) | 66 |
| Emission standard | Brazil M3 |
| Max.tractive force(kN) | 58 |
| Max.breakout force(kN) | 58 |
| Gears() | Forward 2 reverse 2 |
| Total time(s) | 9.1 |
| Fuel tank capacity(L) | 120 |
