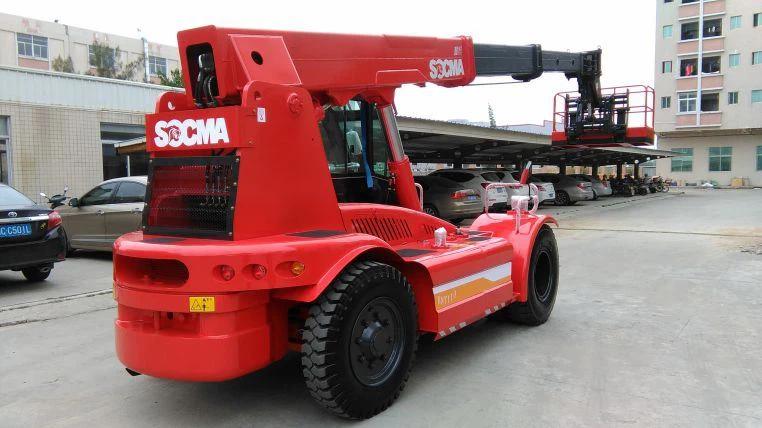

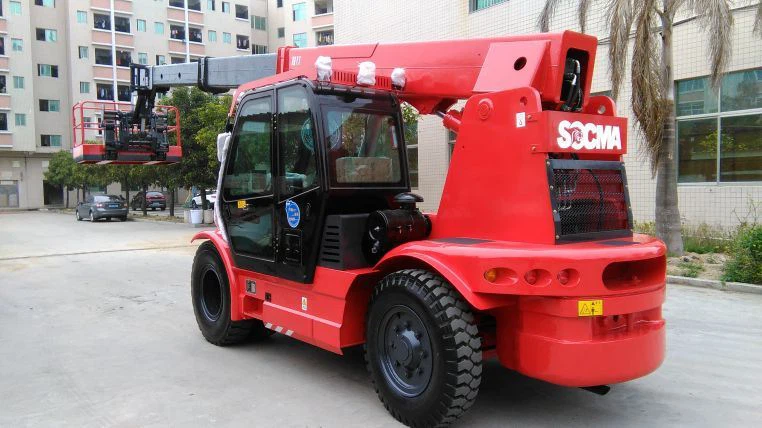

The HNT110 telescopic crane lift truck uses hydro-mechanical transmission with two-speed forward and two-speed reverse, full hydraulic power steering, and air-over-oil type drum brake. The working units include the three-stage quadrilateral telescopic boom and a retractable boom. The telescopic crane lift truck is not only applicable to lifting the stone slabs in containers, but can be used as a general crane or a fork truck. With high efficiency, the lift truck has found extensive applications in factory, dock, freight yard, forest farm, building material, warehouse, logistics, and other industries.
Item | SOCMA HNT-110 | Remark |
Rated load，kg | ≤11000 | |
Operating weight，kg | 13000 | |
Mas. Lifting height of the main hook，mm | 7605 | （distance from the main hook to the ground） |
Max. lifting height of the complete arm，mm | 10300 | （front point hoist） |
Wheel base，mm | 2988 | |
Front tread，mm | 1638 | |
Rear tread，mm | 1845 | |
Min. ground clearance，mm | 310 | |
Overall length，mm | 5288 | Without hook |
Overall width, mm | 2350 | |
Overall height，mm | 2715 | |
Height of the cab，mm | 2400 | |
Length of rear overhang，mm | 1055 | |
Max. outreach of the main hook，mm | 4800 | （horizontal direction） |
Max. outreach of the complete arm，mm | 7900 | （horizontal direction） |
Tipping angle of hook, up/down，(°) | 22°/24° | |
Tipping angle of big arm, up/down，(°) | -14°/43° | |
Min. turning radius, mm | 6800 | |
Max. gradeability，(°) | ≥20% | |
Max. travelling speed，Km/h | 25 | |
Front wheel | 11.00-20 | |
Rear wheel | 9.00-20 |
