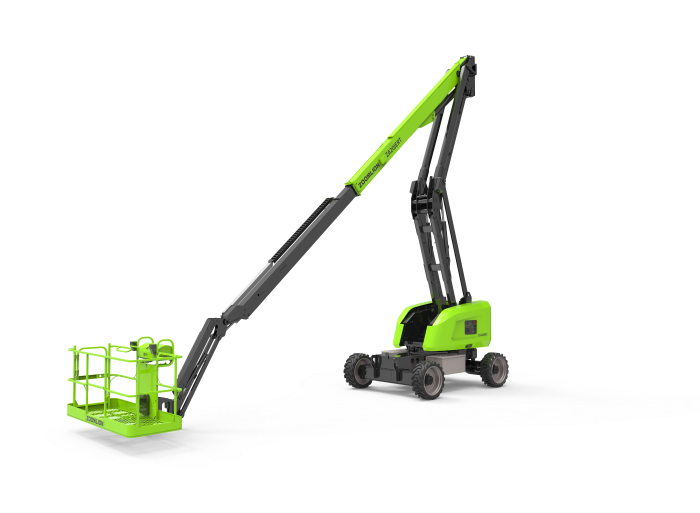

RT Electric Articulating Boom Lifts feature strong rough terrainability, providing exceptional off-road performance and quiet working conditions around jobsites.
| Work Height | 21.38m |
| Platform Height | 19.38m |
| Horizontal Outreach | 12.1m |
| Up and Over Height | 8.25m |
| A – Stowed Length | 8.8m |
| B – Stowed Width | 2.46m |
| C – Stowed Height | 2.52m |
| D – Platform Length | 2.44m |
| E – Platform Width | 2.44m |
| F – Wheelbase | 2.52m |
| G – Ground Clearance | 0.4m |
| Platform Capacity | 250kg/360kg |
| Drive Speed | 6.1km/h |
| Gradeability | 45% |
| Axles Oscillation | 0.20m |
| Turning Radius (Inside) | 2.78m |
| Turning Radius (Outside) | 5.49m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0.64m |
| Max. Working Slope | 3°/5° |
| Max. Wind Speed | 12.5m/s |
| Battery | 24×2V/440Ah |
| Charger | 48V/60A |
| Drive Motor | AC 32V |
| Lift Motor | AC 32V |
| Auxiliary Power | 12V DC Electrical pump |
| Hydraulic Tank Capacity | 75L |
| Gross | 5115lb |
| Gross | 9250kg |
| Type | 33×12 D610 Foam-filled tire |
